Noisy quantum metrology: multi-qubit

import itertools

import equinox as eqx
import jax
import jax.numpy as jnp
import seaborn as sns
import ultraplot as uplt

from squint import Circuit
from squint.interface.base import SharedGate, Wire
from squint.interface.dv import Conditional, DiscreteVariableState, HGate, RZGate, x
from squint.interface.noise import BitFlipChannel
from squint.backends.tensornetwork.simulator import Simulator
from squint.math.information_matrices import classical_fisher_information_matrix
from squint.utils import partition_op

dim = 2
n = 8
wires = [Wire(dim=dim, idx=i) for i in range(n)]

circuit = Circuit()
for w in wires:
    circuit.add(DiscreteVariableState(wires=(w,), n=(0,)))

circuit.add(HGate(wires=(wires[0],)))
for i in range(n - 1):
    circuit.add(Conditional(ufunc=x, wires=(wires[i], wires[i + 1])))

circuit.add(
    SharedGate(op=RZGate(wires=(wires[0],), phi=0.1 * jnp.pi), wires=tuple(wires[1:])),
    "phase",
)

for w in wires:
    circuit.add(HGate(wires=(w,)))

circuit.add(
    SharedGate(op=BitFlipChannel(wires=(wires[0],), p=0.2), wires=tuple(wires[1:])),
    # SharedGate(op=DepolarizingChannel(wires=(wires[0],), p=0.2), wires=tuple(wires[1:])),
    "noise",
)

params_phase, static_and_noise = partition_op(circuit, "phase")
params_noise, static = partition_op(static_and_noise, "noise")

sim = Simulator(static=static, params=(params_phase, params_noise))

def forward_probs(p_phase, p_noise):
    return jnp.abs(sim.forward(p_phase, p_noise)) ** 2

grad_probs = jax.jacfwd(forward_probs)  # differentiates w.r.t. p_phase (argnums=0)

print(sim.subscripts)

a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,aq,br,qcsu,rdtv,uewy,vfxz,ygAC,zhBD,CiEG,DjFH,GkIK,HlJL,KmMO,LnNP,OoQS,PpRT,sU,tV,wW,xX,AY,BZ,EÀ,FÁ,IÂ,JÃ,MÄ,NÅ,QÆ,RÇ,SÈ,TÉ,UÊ,VË,WÌ,XÍ,YÎ,ZÏ,ÀÐ,ÁÑ,ÂÒ,ÃÓ,ÄÔ,ÅÕ,ÆÖ,Ç×,ÈØ,ÉÙ,쏜ÊÚ,쏜ËÛ,쏞ÌÜ,쏞ÍÝ,쏠ÎÞ,쏠Ïß,쏢Ðà,쏢Ñá,쏤Òâ,쏤Óã,쏦Ôä,쏦Õå,쏨Öæ,쏨×ç,쏪Øè,쏪Ùé->ÚÜÞàâäæèÛÝßáãåçé

# ps = jnp.linspace(0, 0.5, 50)
ps = jnp.logspace(-8, -2, 50)

params_noise = eqx.tree_at(lambda pytree: pytree.ops["noise"].op.p, params_noise, ps)
params_phase = eqx.tree_at(
    lambda pytree: pytree.ops["phase"].op.phi, params_phase, jnp.ones_like(ps) * 0.01
)

cfims = jax.vmap(lambda pp, pn: classical_fisher_information_matrix(forward_probs, grad_probs, pp, pn))(params_phase, params_noise)

colors = itertools.cycle(sns.color_palette("Set2", n_colors=3))
fig, ax = uplt.subplots(nrows=1, figsize=(6, 4), sharey=False)

ax.plot(
    ps,
    cfims,
    color=next(colors),
    label=r"$\mathcal{I}_\varphi^C$",
    marker="o",
    markersize=3,
    linewidth=1,
)

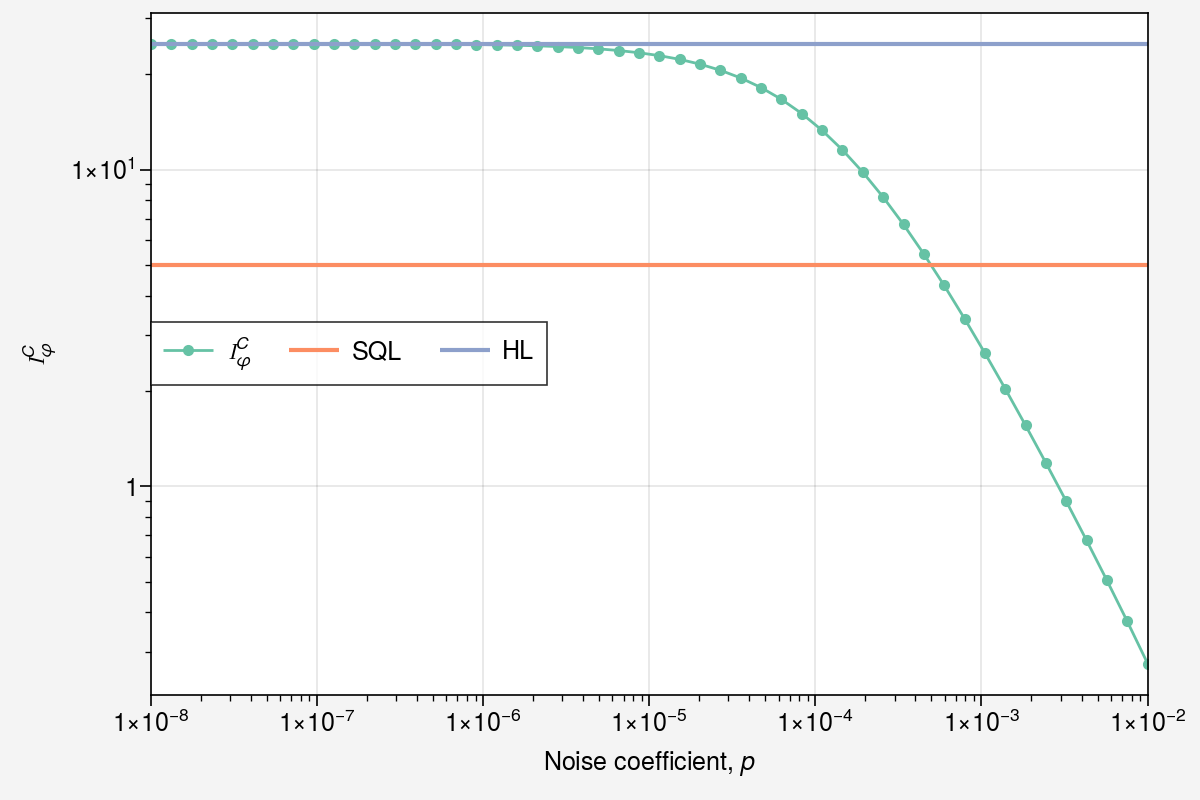

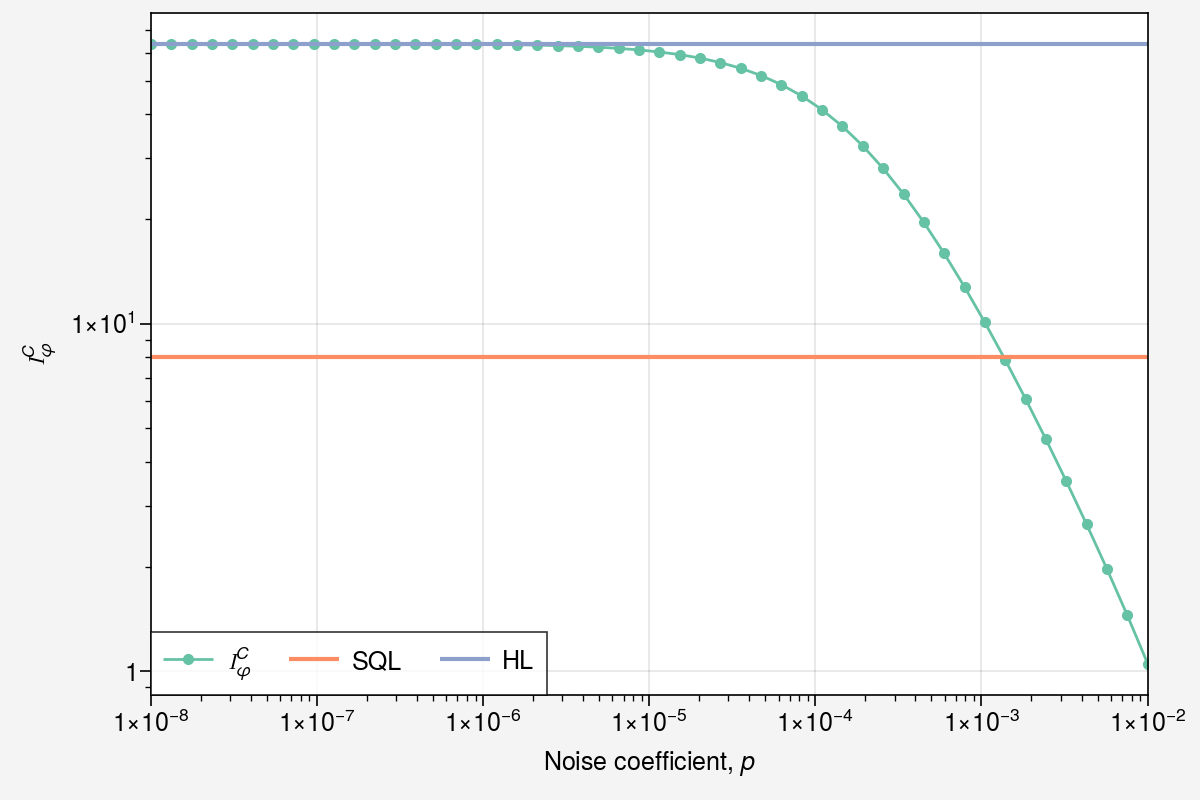

ax.axhline(n, label="SQL", color=next(colors))
ax.axhline(n**2, label="HL", color=next(colors))
ax.set(
    xlabel=r"Noise coefficient, $p$",
    ylabel=r"$\mathcal{I}_\varphi^C$",
    # ylim=[0, 1.05 * jnp.max(cfims)],
    yscale="log",
    xscale="log",
)
ax.format(xformatter="sci", yformatter="sci")
ax.legend();
